| 100BaseFX Ports (multi-mode SC connector) | IM-6700A-2MSC4TX: 2IM-6700A-4MSC2TX: 4IM-6700A-6MSC: 6 |
| 100BaseFX Ports (multi-mode ST connector) | IM-6700A-2MST4TX: 2 IM-6700A-4MST2TX: 4 IM-6700A-6MST: 6 |
| 100BaseFX Ports (single-mode SC connector) | IM-6700A-2SSC4TX: 2 IM-6700A-4SSC2TX: 4 IM-6700A-6SSC: 6 |
| 100BaseSFP Slots | IM-6700A-8SFP: 8 |
| 10/100BaseT(X) Ports (RJ45 connector) | IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 2IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 4IM-6700A-8TX: 8 Supported functions: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Standards | IM-6700A-8PoE: IEEE 802.3af/at for PoE/PoE+ output |
| Power Consumption | IM-6700A-8TX/8PoE: 1.21 W (max.)IM-6700A-8SFP: 0.92 W (max.)IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 3.19 W (max.) IM-6700A-6MST/6SSC/6MSC: 7.57 W (max.) IM-6700A-4SSC2TX/4MSC2TX/4MST2TX: 5.28 W (max.) |
| PoE Ports (10/100BaseT(X), RJ45 connector) | IM-6700A-8PoE: Auto negotiation speed, Full/Half duplex mode |
| Weight | IM-6700A-8TX: 225 g (0.50 lb)IM-6700A-8SFP: 295 g (0.65 lb) IM-6700A-2MSC4TX/2MST4TX/2SSC4TX/4MSC2TX/4MST2TX/4SSC2TX: 270 g (0.60 lb) IM-6700A-6MSC/6SSC/6MSC: 390 g (0.86 lb) IM-6700A-8PoE: 260 g (0.58 lb) |
| Time | IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 7,356,096 hrsIM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 4,359,518 hrsIM-6700A-6MSC/6MST/6SSC: 3,153,055 hrs IM-6700A-8PoE: 3,525,730 hrs IM-6700A-8SFP: 5,779,779 hrs IM-6700A-8TX: 28,409,559 hrs |
| Dimensions | 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) |

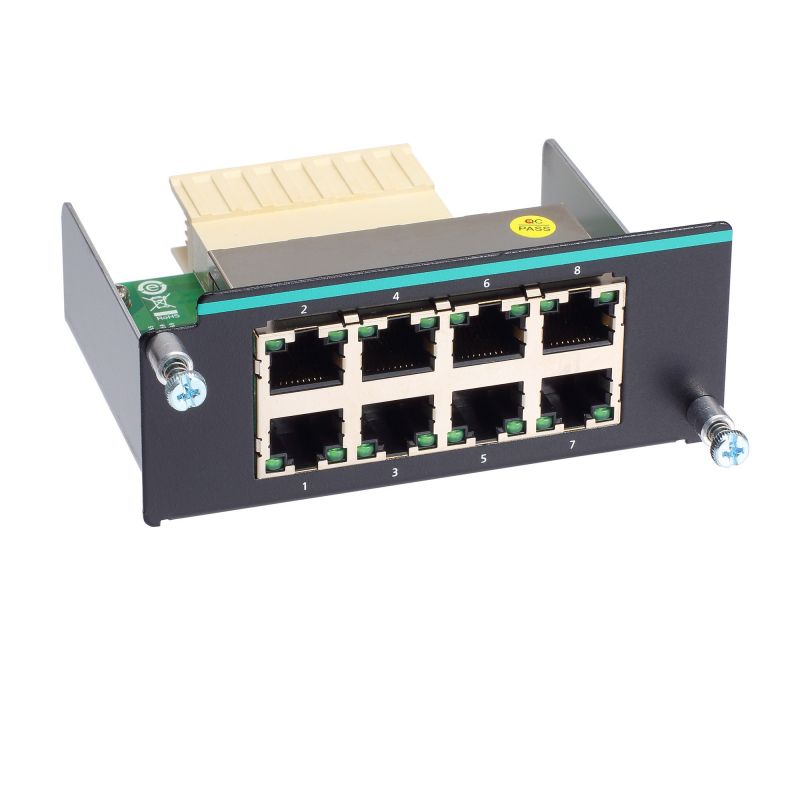

| Model 1 | MOXA-IM-6700A-8TX |
| Model 2 | MOXA IM-6700A-8SFP |
| Model 3 | MOXA IM-6700A-2MSC4TX |
| Model 4 | MOXA IM-6700A-4MSC2TX |
| Model 5 | MOXA IM-6700A-6MSC |
| Model 6 | MOXA IM-6700A-2MST4TX |
| Model 7 | MOXA IM-6700A-4MST2TX |

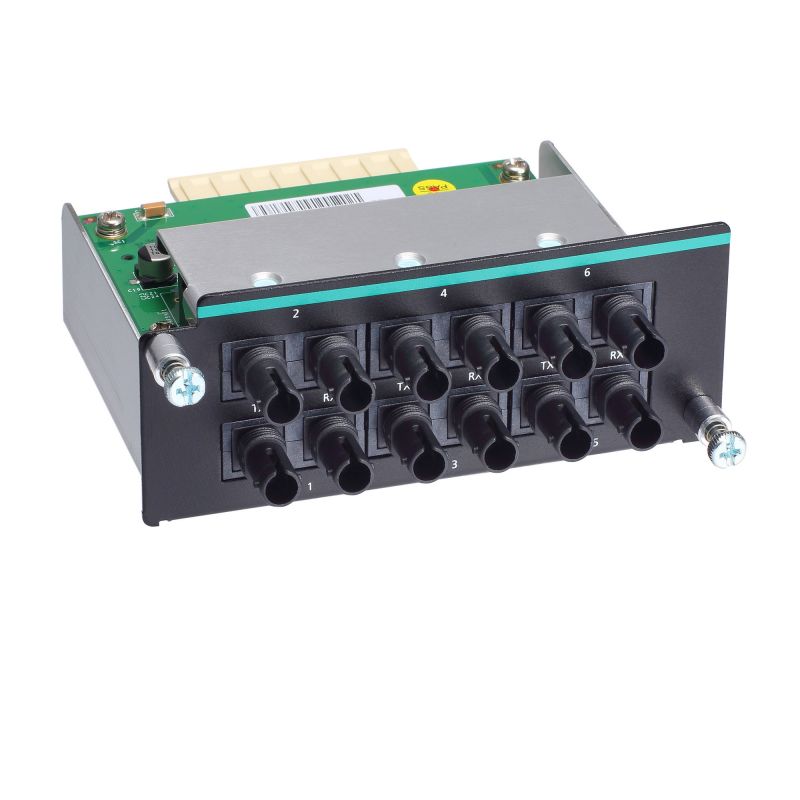

| Model 8 | MOXA IM-6700A-6MST |
| Model 9 | MOXA IM-6700A-2SSC4TX |
| Model 10 | MOXA IM-6700A-4SSC2TX |
| Model 11 | MOXA IM-6700A-6SSC |
| Model 12 | MOXA IM-6700A-8PoE |
