| Alarm Contact Channels | Relay output with current carrying capacity of 2 A @ 30 VDC |
| Digital Inputs | +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | IKS-G6824A-4GTXSFP-HV-HV Series: 20IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 12 |
| 100/1000BaseSFP Ports | IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 8IKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 20 |
| Combo Ports (10/100/1000BaseT(X) or100/1000BaseSFP+) | 4 |
| Standards | IEEE 802.1D-2004 for Spanning Tree ProtocolIEEE 802.1p for Class of ServiceIEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1wfor Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE802.3for10BaseT IEEE 802.3ab for1000BaseT(X) IEEE 802.3ad for Port Trunkwith LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for1000BaseSX/LX/LHX/ZX |
| Input Voltage | 110to 220 VAC, Redundant dual inputs |
| Operating Voltage | 85 to 264 VAC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Input Current | 0.67/0.38 A@ 110/220 VAC |
| IP Rating | IP30 |
| Dimensions | 440 x44x 386.9 mm (17.32 x1.73x15.23 in) |
| Weight | 5100g(11.25 lb) |
| Installation | Rack mounting |
| Operating Temperature | Standard Models: -10 to 60°C (14to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |

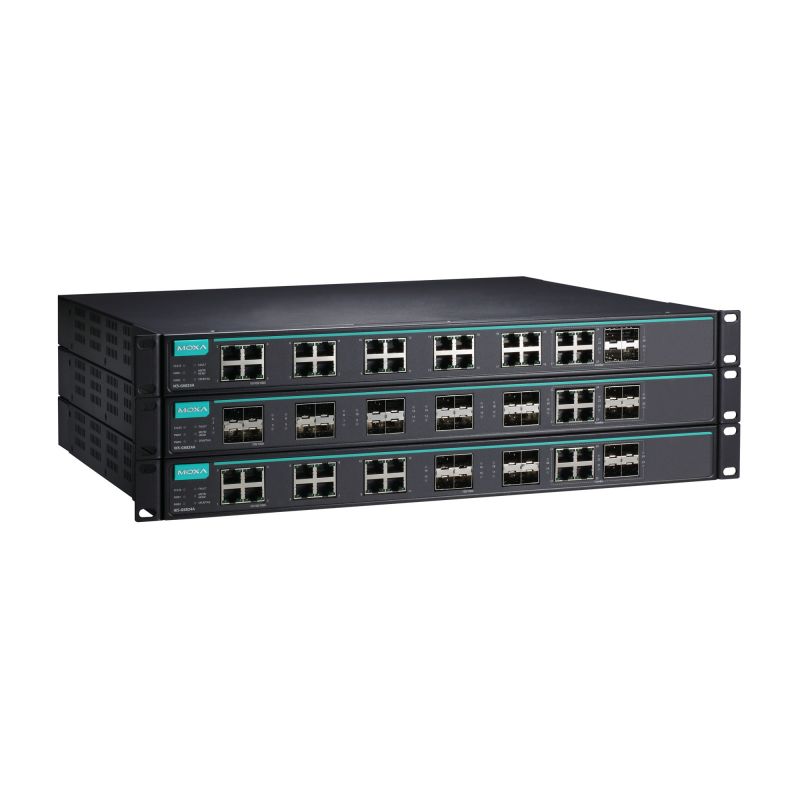

| Model 1 | MOXA IKS-G6824A-20GSFP-4GTXSFP-HV-HV |
| Model 2 | MOXA IKS-G6824A-4GTXSFP-HV-HV |
| Model 3 | MOXA IKS-G6824A-8GSFP-4GTXSFP-HV-HV |
| Model 4 | MOXA IKS-G6824A-20GSFP-4GTXSFP-HV-HV-T |
| Model 5 | MOXA IKS-G6824A-4GTXSFP-HV-HV-T |
| Model 6 | MOXA IKS-G6824A-8GSFP-4GTXSFP-HV-HV-T |
