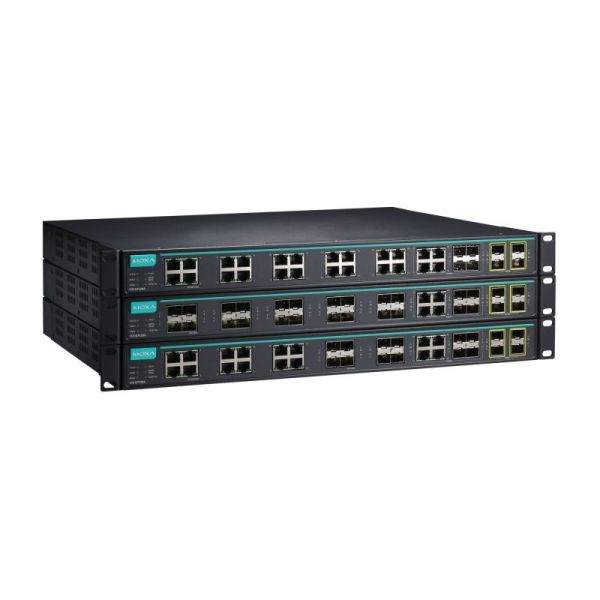

MOXA ICS-G7528A-4XG-HV-HV-T 24G+4 10GbE-port Layer 2 Full Gigabit Managed Industrial Ethernet Switch

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7528A Series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, making them ideal for large-scale industrial networks. The ICS-G7528A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
send email to us

Products Details

Model 1 MOXA ICS-G7528A-4XG-HV-HV-T
Model 2 MOXA ICS-G7528A-8GSFP-4XG-HV-HV-T
Model 3 MOXA ICS-G7528A-20GSFP-4XG-HV-HV-T
  • 24 Gigabit Ethernet ports plus up to 4 10G Ethernet ports • Up to 28 optical fiber connections (SFP slots) • Fanless, -40 to 75°C operating temperature range (T models) • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)1, and STP/RSTP/MSTP for network redundancy • Isolated redundant power inputs with universal 110/220 VAC power supply range • Supports MXstudio for easy, visualized industrial network management • V-ON™ ensures millisecond-level multicast data and video network recovery  •Command line interface (CLI) for quickly configuring major managed functions •DHCP Option 82 for IP address assignment with different policies •Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring •IGMP snooping and GMRP for filtering multicast traffic •IEEE 802.1Q VLAN and GVRP protocol to ease network planning •QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism •Automatic warning by exception through email and relay output •Digital inputs for integrating sensors and alarms with IP networks •Port Trunking for optimum bandwidth utilization •TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security •Access control lists (ACL) increase the flexibility and security of network management (ICS-G7800A Series) •SNMPv1/v2c/v3 for different levels of network management •RMON for proactive and efficient network monitoring •Bandwidth management to prevent unpredictable network status •Lock port function for blocking unauthorized access based on MAC address •Port mirroring for online debugging
10/100/1000BaseT(X) Ports (RJ45 connector)   ICS-G7528A-4XG-HV-HV-T: 20 ICS-G7528A-8GSFP-4XG-HV-HV-T: 12
100/1000BaseSFP Ports   ICS-G7528A-8GSFP-4XG-HV-HV-T: 8 ICS-G7528A-20GSFP-4XG-HV-HV-T: 20
10GbE SFP+ Slots   4
Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP+)   4
Standards IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1wfor Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE802.3for10BaseT IEEE 802.3ab for1000BaseT(X) IEEE 802.3ad for Port Trunkwith LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for1000BaseSX/LX/LHX/ZX IEEE 802.3aefor10 Gigabit Ethernet

Input Voltage 110to 220 VAC, Redundant dual inputs
Operating Voltage 85 to 264 VAC
Overload Current Protection Supported
Reverse Polarity Protection Supported
Input Current 1/0.5A@110/220VAC

IP Rating IP30
Dimensions 440 x44x 386.9 mm (17.32 x1.73x15.23 in)
Weight 6470g(14.26 lb)
Installation Rack mounting
Operating Temperature -40 to 75°C (-40 to167°F)
Storage Temperature (package included) -40 to 85°C (-40 to185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
