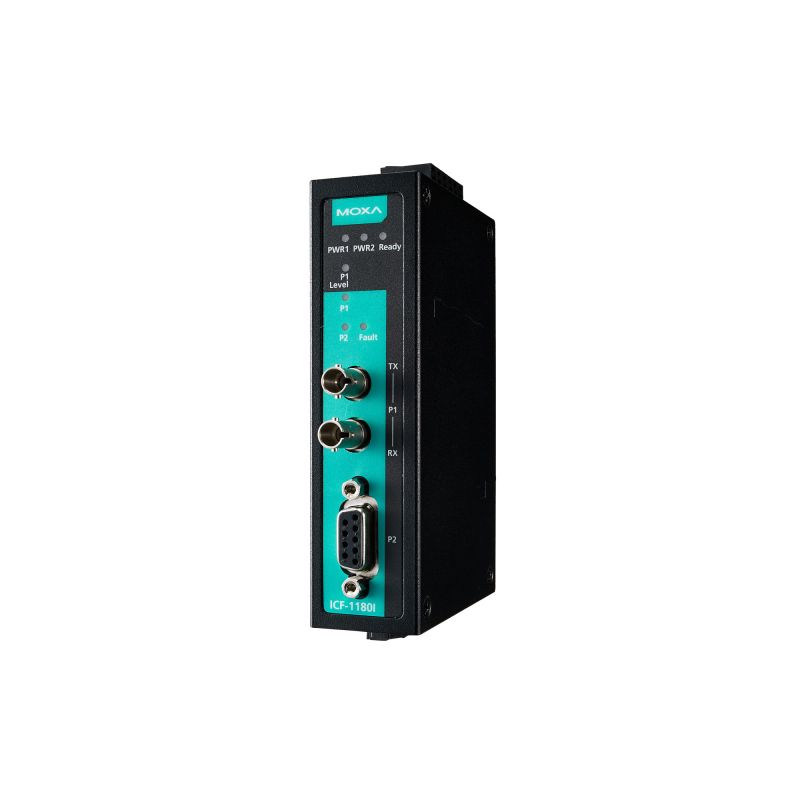

MOXA ICF-1180I-S-ST Industrial PROFIBUS-to-fiber Converter

The ICF-1180I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1180I provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.
send email to us

Products Details

Fiber-cable test function validates fiber communication Auto baudrate detection and data speed of up to 12 Mbps PROFIBUS fail-safe prevents corrupted datagrams in functioning segments Fiber inverse feature Warnings and alerts by relay output 2 kV galvanic isolation protection Dual power inputs for redundancy (Reverse power protection) Extends PROFIBUS transmission distance up to 45 km Wide-temperature model available for -40 to 75°C environments Supports Fiber Signal Intensity Diagnosis Serial Interface
Connector ICF-1180I-M-ST: Multi-modeST connector ICF-1180I-M-ST-T: Multi-mode ST connectorICF-1180I-S-ST: Single-mode ST connectorICF-1180I-S-ST-T: Single-mode ST connector
PROFIBUS Interface
Industrial Protocols PROFIBUS DP
No. of Ports 1
Connector DB9 female
Baudrate 9600 bps to12 Mbps
Isolation 2kV(built-in)
Signals PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
Power Parameters
Input Current 269 mA@12to48 VDC
Input Voltage 12to48 VDC
No. of Power Inputs 2
Overload Current Protection Supported
Power Connector Terminal block (for DC models)
Power Consumption 269 mA@12to48 VDC
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 30.3x115x70 mm (1.19x4.53x 2.76 in)
Weight 180g(0.39 lb)
Installation DIN-rail mounting (with optional kit) Wall mounting
Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
MOXA ICF-1180I Series Available Models
Model Name Operating Temp. Fiber Module Type
ICF-1180I-M-ST 0 to 60°C Multi-mode ST
ICF-1180I-S-ST 0 to 60°C Single-mode ST
ICF-1180I-M-ST-T -40 to 75°C Multi-mode ST
ICF-1180I-S-ST-T -40 to 75°C Single-mode ST
