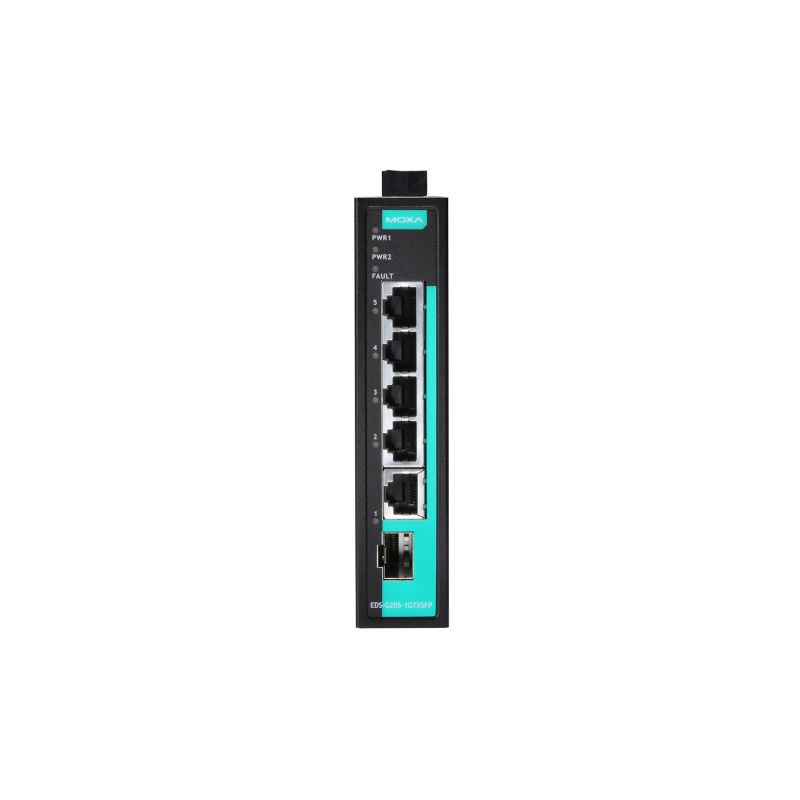

MOXA EDS-G205-1GTXSFP 5-port Full Gigabit Unmanaged POE Industrial Ethernet Switch

The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.

Products Details

Full Gigabit Ethernet portsIEEE 802.3af/at, PoE+ standards Up to 36 W output per PoE port 12/24/48 VDC redundant power inputs Supports 9.6 KB jumbo frames Intelligent power consumption detection and classification Smart PoE overcurrent and short-circuit protection -40 to 75°C operating temperature range (-T models) Input/Output Interface
Alarm Contact Channels 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) 4Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 1
Standards IEEE 802.3 for10BaseTIEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet
Power Parameters
Connection 1 removable 6-contact terminal block(s)
Input Voltage 12/24/48 VDC, Redundantdual inputs
Operating Voltage 9.6 to 60 VDC
Reverse Polarity Protection Supported
Input Current 0.14A@24 VDC
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 29x135x105 mm (1.14x5.31 x4.13 in)
Weight 290 g (0.64 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature EDS-G205-1GTXSFP: -10 to 60°C (14to140°F)EDS-G205-1GTXSFP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
MOXA EDS-G205-1GTXSFP Available Models
Model 1 MOXA EDS-G205-1GTXSFP
Model 2 MOXA EDS-G205-1GTXSFP-T
