- Full Gigabit Ethernet ports IEEE 802.3af/at, PoE+ standards Up to 36 W output per PoE port 12/24/48 VDC redundant power inputs Supports 9.6 KB jumbo frames Intelligent power consumption detection and classification Smart PoE overcurrent and short-circuit protection -40 to 75°C operating temperature range (-T models)
| Alarm Contact Channels | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 4Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 1 |
| Standards | IEEE 802.3 for10BaseTIEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet |
| Connection | 1 removable 6-contact terminal block(s) |
| Input Voltage | 12/24/48 VDC, Redundantdual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Reverse Polarity Protection | Supported |
| Input Current | 0.14A@24 VDC |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 29x135x105 mm (1.14x5.31 x4.13 in) |
| Weight | 290 g (0.64 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | EDS-G205-1GTXSFP: -10 to 60°C (14to140°F)EDS-G205-1GTXSFP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |

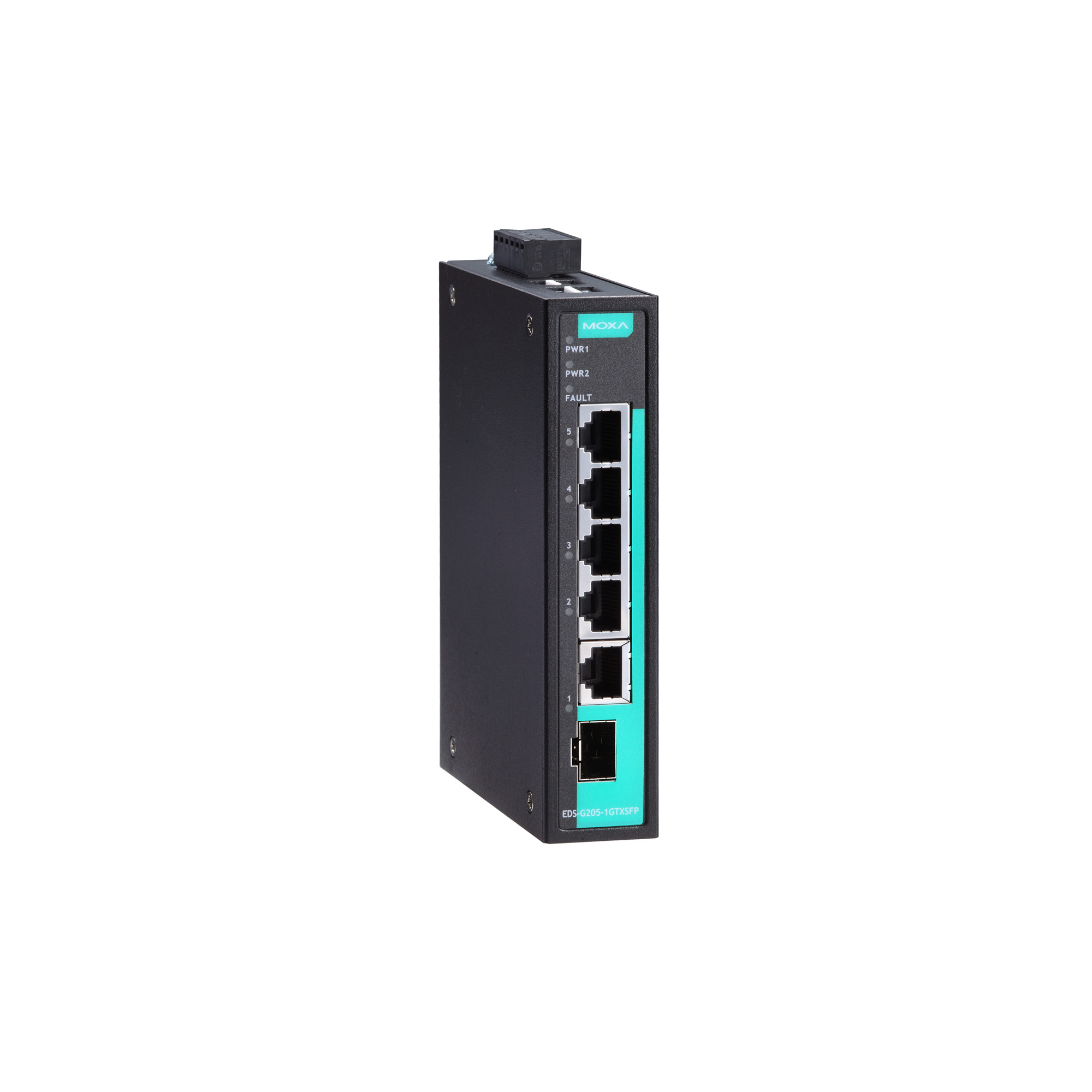

| Model 1 | MOXA EDS-G205-1GTXSFP |
| Model 2 | MOXA EDS-G205-1GTXSFP-T |
