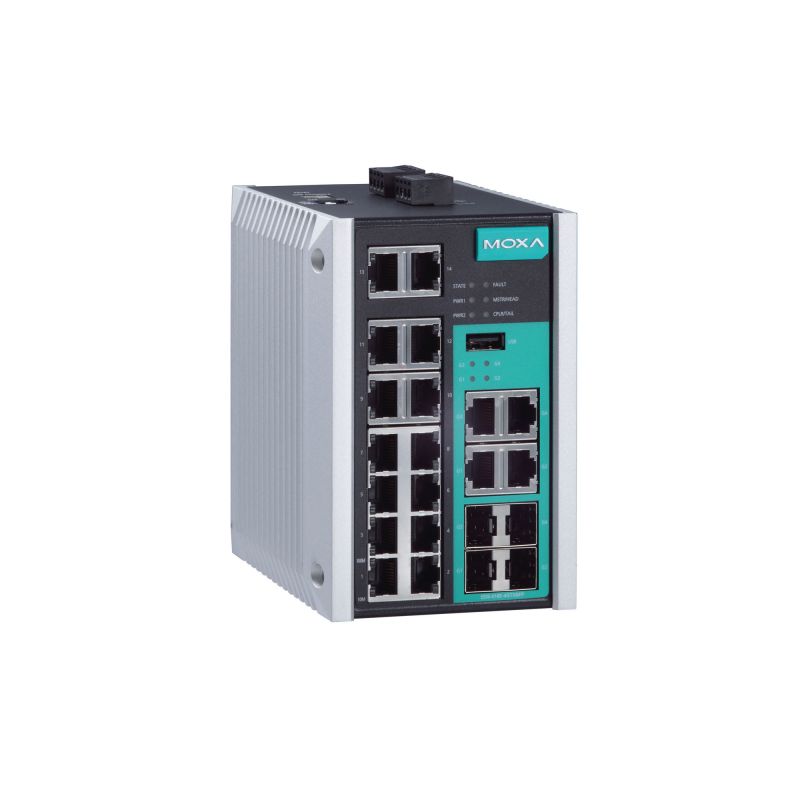

MOXA EDS-518E-4GTXSFP Gigabit Managed Industrial Ethernet Switch

The EDS-518E standalone, compact 18-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 14 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-518E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the system reliability and availability of your network backbone. The EDS-518E also supports advanced management and security features. In addition, the EDS-518E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.

Products Details

4 Gigabit plus 14 fast Ethernet ports for copper and fiberTurbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security Security features based on IEC 62443 EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring Fiber Check™—comprehensive fiber status monitoring and warning on MST/MSC/SSC/SFP fiber ports Supports MXstudio for easy, visualized industrial network management V-ON™ ensures millisecond-level multicast data and video network recovery Input/Output Interface
Alarm Contact Channels 1, Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons Reset button
Digital Input Channels 1
Digital Inputs +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) EDS-518E-4GTXSFP:14EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 12 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-Xconnection
Combo Ports (10/100/1000BaseT(X) or100/1000BaseSFP+) 4
10/100/1000BaseT(X) Ports (RJ45 connector) Auto negotiation speed Full/Half duplex modeAuto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-518E-MM-SC-4GTXSFP Series: 2
100BaseFX Ports (multi-mode ST connector) EDS-518E-MM-ST-4GTXSFP Series: 2
100BaseFX Ports (single-mode SC connector)  EDS-518E-SS-SC-4GTXSFP Series: 2
Power Parameters
Connection 2 removable 4-contact terminal block(s)
Input Current EDS-518E-4GTXSFP Series: 0.37 A@24 VDCEDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 0.41 A@24 VDC
Input Voltage 12/24/48/-48 VDC, Redundantdual inputs
Operating Voltage 9.6 to 60 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 94x135x137 mm (3.7 x 5.31 x 5.39 in)
Weight 1518g(3.35 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
MOXA EDS-518E-4GTXSFP Available Models
Model 1 MOXA EDS-518E-4GTXSFP
Model 2 MOXA EDS-518E-MM-SC-4GTXSFP
Model 3 MOXA EDS-518E-MM-ST-4GTXSFP
Model 4 MOXA EDS-518E-SS-SC-4GTXSFP
Model 5 MOXA EDS-518E-4GTXSFP-T
Model 6 MOXA EDS-518E-MM-SC-4GTXSFP-T
Model 7 MOXA EDS-518E-MM-ST-4GTXSFP-T
Model 8 MOXA EDS-518E-SS-SC-4GTXSFP-T
