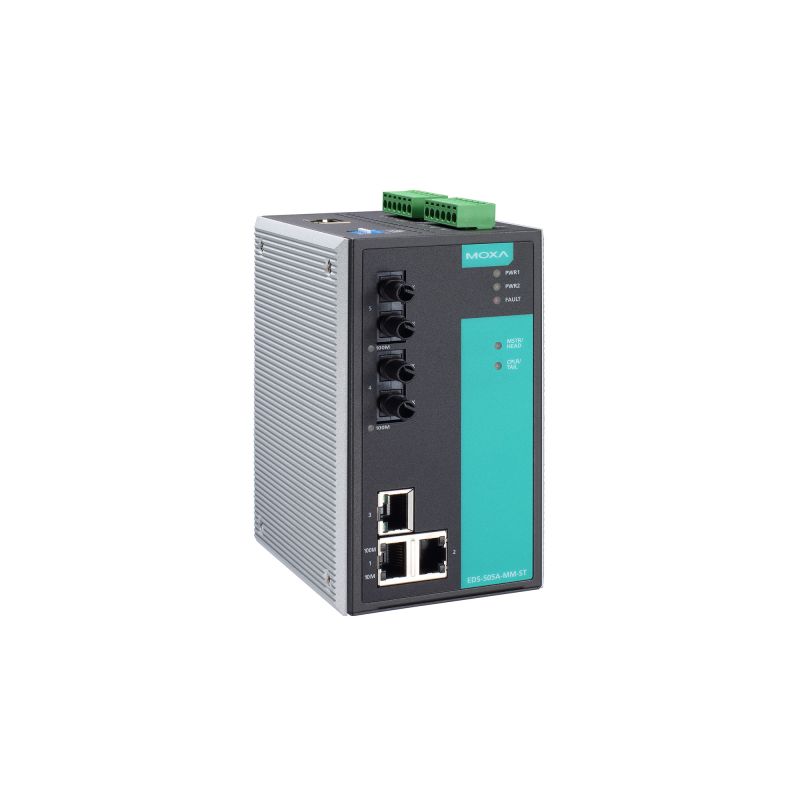

MOXA EDS-505A 5-port Managed Industrial Ethernet Switch

The EDS-505A standalone 5-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-505A switches suitable for any harsh industrial environment.

Products Details

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01 Supports MXstudio for easy, visualized industrial network management
Input/Output Interface
Alarm Contact Channels 2, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels 2
Digital Inputs +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Buttons Reset button
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) EDS-505A/505A-T: 5EDS-505A-MM-SC/MM-ST/SS-SC Series: 3All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-505A-MM-SC Series: 2
100BaseFX Ports (multi-mode ST connector) EDS-505A-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector) EDS-505A-SS-SC Series: 2
Standars IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP
Power Parameters
Connection 2 removable 6-contact terminal block(s)
Input Voltage 12/24/48 VDC, Redundantdual inputs
Operating Voltage 9.6 to 60 VDC
Input Current EDS-505A/EDS-505A-T: 0.21 A@24 VDC EDS-505A-MM-SC/MM-ST/SS-SC Series: 0.29 A@24 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 80.2 x135x105 mm (3.16 x 5.31 x 4.13 in)
Weight 1040g(2.3lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
MOXA EDS-505A  Available Models
Model 1 MOXA EDS-505A
Model 2 MOXA EDS-505A-MM-SC
Model 3 MOXA EDS-505A-MM-ST
Model 4 MOXA EDS-505A-SS-SC
Model 5 MOXA EDS-505A-MM-SC-T
Model 6 MOXA EDS-505A-MM-ST-T
Model 7 MOXA EDS-505A-SS-SC-T
Model 8 MOXA EDS-505A-T
