MOXA EDS-316 16-port unmanaged Ethernet switch

The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.
send email to us

Products Details

The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards. The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.Features and Benefits 1Relay output warning for power failure and port break alarm Broadcast storm protection -40 to 75°C operating temperature range (-T models)
10/100BaseT(X) Ports (RJ45 connector) EDS-316 Series: 16 EDS-316-MM-SC/MM-ST/MS-SC/SS-SC Series, EDS-316-SS-SC-80: 14 EDS-316-M-SC/M-ST/S-SC Series: 15 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-316-M-SC: 1 EDS-316-M-SC-T: 1 EDS-316-MM-SC: 2 EDS-316-MM-SC-T: 2 EDS-316-MS-SC: 1
100BaseFX Ports (multi-mode ST connector) EDS-316-M-ST Series: 1 EDS-316-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector) EDS-316-MS-SC, EDS-316-S-SC Series: 1 EDS-316-SS-SC Series: 2
100BaseFX Ports (single-mode SC connector, 80 km EDS-316-SS-SC-80: 2
Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control


Installation

DIN-rail mounting

Wall mounting (with optional kit)

IP Rating

IP30

Weight

1140 g (2.52 lb)

Housing

Metal

Dimensions

80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Model 1 MOXA EDS-316

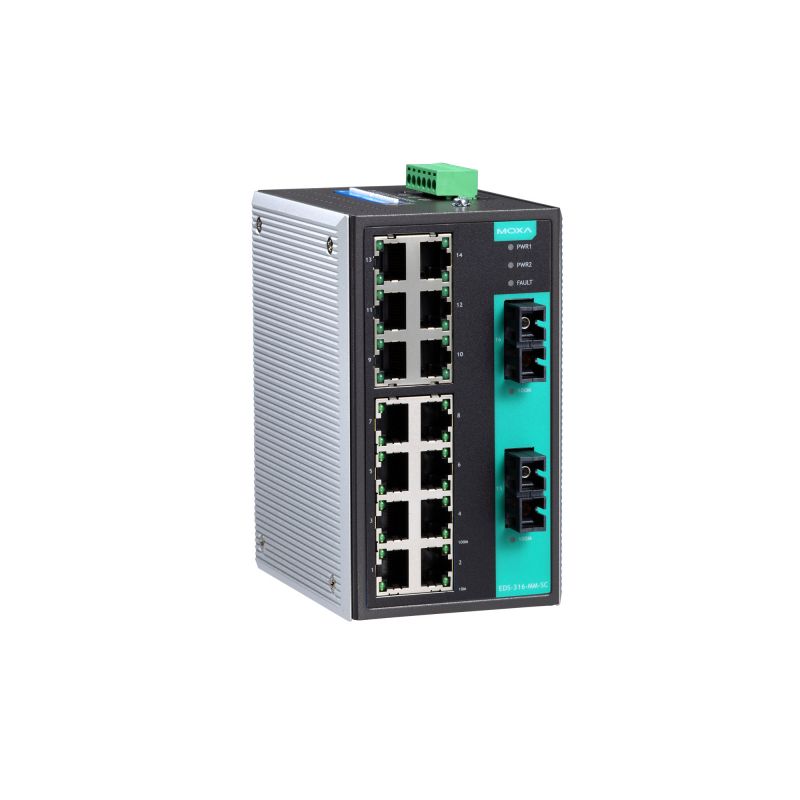

Model 2 MOXA EDS-316-MM-SC
Model 3 MOXA EDS-316-MM-ST
Model 4 MOXA EDS-316-M-SC
Model 5 MOXA EDS-316-MS-SC
Model 6 MOXA EDS-316-M-ST
Model 7 MOXA EDS-316-S-SC
Model 8 MOXA EDS-316-SS-SC
