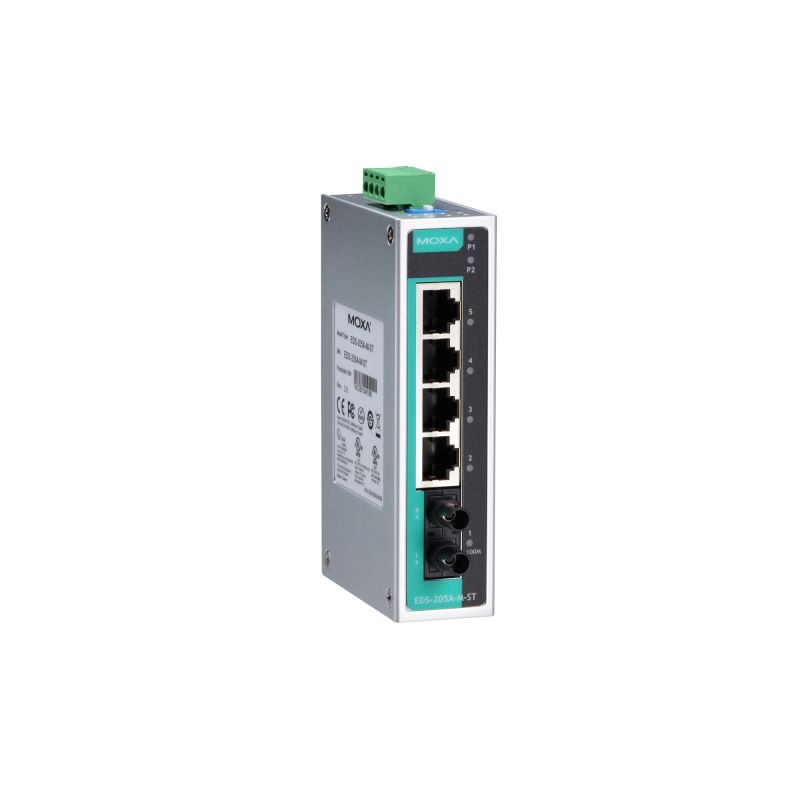

MOXA EDS-205A 5-port compact unmanaged Ethernet switch

The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments.

Products Details

The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards. The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.Features and Benefits 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector) Redundant dual 12/24/48 VDC power inputs IP30 aluminum housing Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/GL/LR/ABS/NK) -40 to 75°C operating temperature range (-T models)
10/100BaseT(X) Ports (RJ45 connector) EDS-205A/205A-T: 5EDS-205A-M-SC/M-ST/S-SC Series: 4All models support:Auto negotiation speed Full/half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector EDS-205A-M-SC Series: 1
100BaseFX Ports (multi-mode ST connector) EDS-205A-M-ST Series: 1
100BaseFX Ports (single-mode SC connector) EDS-205A-S-SC Series: 1
Standards IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3x for flow contro

Installation

DIN-rail mounting

Wall mounting (with optional kit)

IP Rating

IP30

Weight

175 g (0.39 lb)

Housing

Aluminum

Dimensions

30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Model 1 MOXA EDS-205A-S-SC
Model 2 MOXA EDS-205A-M-SC-T
Model 3 MOXA EDS-205A-M-ST-T
Model 4 MOXA EDS-205A-S-SC-T
Model 5 MOXA EDS-205A-T
Model 6 MOXA EDS-205A
Model 7 MOXA EDS-205A-M-SC
Model 8 MOXA EDS-205A-M-ST
