Get Industrial-grade MOXA EDS-2016-ML Unmanaged Switches From Factory

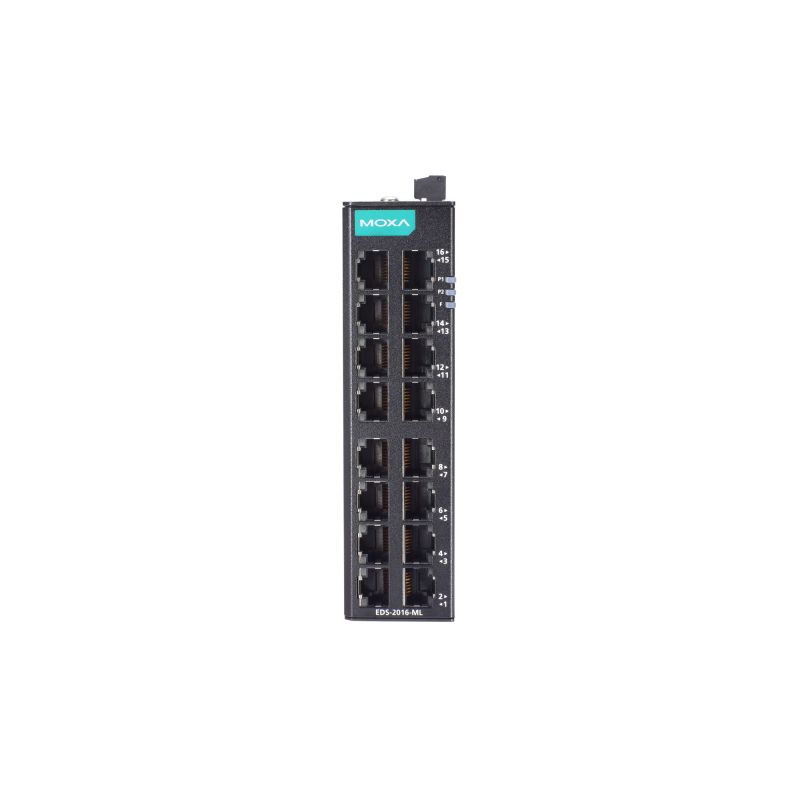

The EDS-2016-ML Series of industrial Ethernet switches have up to 16 10/100M copper ports and two optical fiber ports with SC/ST connector type options, which are ideal for applications that require flexible industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2016-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel. In addition to its compact size, the EDS-2016-ML Series features 12/24/48 VDC redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -10 to 60°C with -40 to 75°C wide temperature models available. The EDS-2016-ML Series has also passed a 100% burn-in test to ensure it will function reliably in the fieldFeatures and Benefits 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector) QoS supported to process critical data in heavy traffic Relay output warning for power failure and port break alarm IP30-rated metal housing Redundant dual 12/24/48 VDC power inputs -40 to 75°C operating temperature range (-T model)

10/100BaseT(X) Ports (RJ45 connector)	EDS-2016-ML: 16 EDS-2016-ML-T: 16 EDS-2016-ML-MM-SC: 14 EDS-2016-ML-MM-SC-T: 14 EDS-2016-ML-MM-ST: 14 EDS-2016-ML-MM-ST-T: 14 EDS-2016-ML-SS-SC: 14 EDS-2016-ML-SS-SC-T: 14 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector	EDS-2016-ML-MM-SC: 2 EDS-2016-ML-MM-SC-T: 2
100BaseFX Ports (single-mode SC connector)	EDS-2016-ML-SS-SC: 2 EDS-2016-ML-SS-SC-T: 2
100BaseFX Ports (multi-mode ST connector)	EDS-2016-ML-MM-ST: 2 EDS-2016-ML-MM-ST-T: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.1p for Class of Service

Installation	DIN-rail mounting Wall mounting (with optional kit)
IP Rating	IP30
Weight	Non-fiber models: 486 g (1.07 lb) Fiber models: 648 g (1.43 lb)
Housing	Metal
Dimensions	EDS-2016-ML: 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in) EDS-2016-ML-MM-SC: 58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)

Model 1	MOXA EDS-2016-ML
Model 2	MOXA EDS-2016-ML-MM-ST
Model 3	MOXA EDS-2016-ML-SS-SC-T
Model 4	MOXA EDS-2016-ML-SS-SC
Model 5	MOXA EDS-2016-ML-T
Model 6	MOXA EDS-2016-ML-MM-SC
Model 7	MOXA EDS-2016-ML-MM-SC-T
Model 8	MOXA EDS-2016-ML-MM-ST

MOXA EDS-2016-ML Unmanaged Switch
