10/100BaseT(X) Ports (RJ45 connector) | Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
Standards | IEEE 802.3 for10BaseT IEEE 802.1p for Class of Service IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control |
Switch Properties | |
Processing Type | Store and Forward |
MAC Table Size | 2K |
Packet Buffer Size | 768 kbits |
DIP Switch Configuration | |
Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
Power Parameters | |
Connection | 1 removable 2-contact terminal block(s) |
Input Current | 0.045 A @24 VDC |

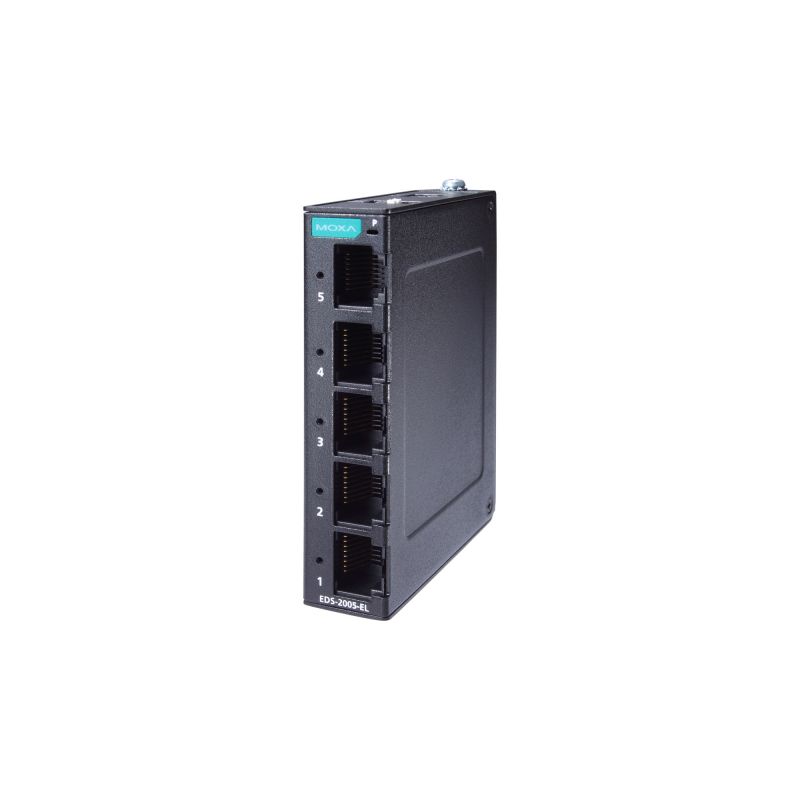

Model 1 | MOXA EDS-2005-EL |
Model 2 | MOXA EDS-2005-EL-T |
Input Voltage | 12/24/48 VDC |
Operating Voltage | 9.6 to 60 VDC |
Overload Current Protection | Supported |
Reverse Polarity Protection | Supported |
Physical Characteristics | |
Dimensions | 18x81 x65 mm (0.7 x3.19x 2.56 in) |
Installation | DIN-rail mounting Wall mounting (with optional kit) |
Weight | 105g(0.23lb) |
Housing | Metal |
Environmental Limits | |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Operating Temperature | EDS-2005-EL:-10to 60°C (14to 140°F) EDS-2005-EL-T: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to185°F) |
