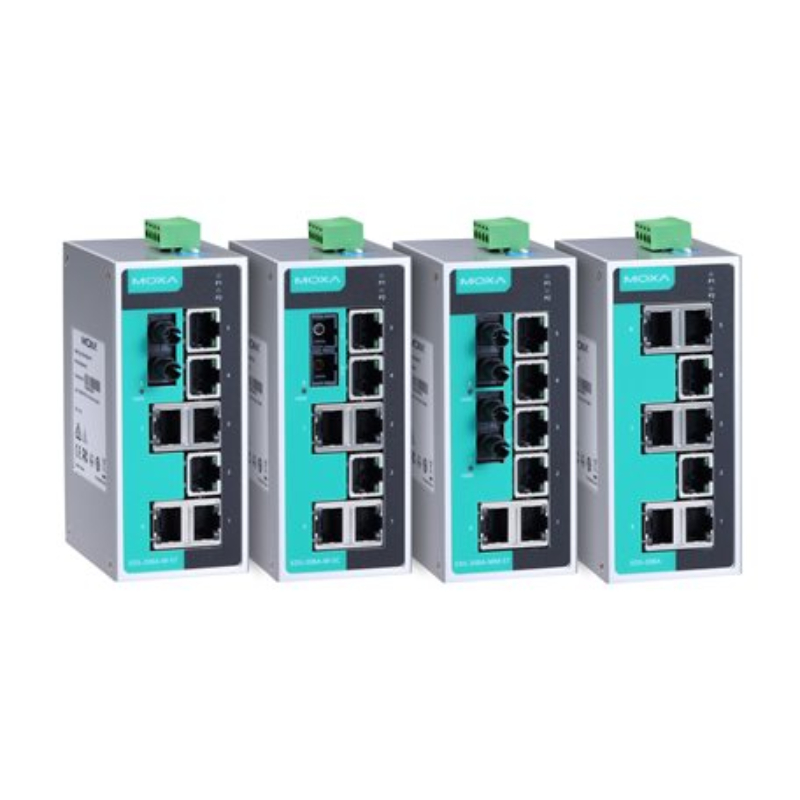

8-port Un Management Industrial Ethernet Switch MOXA EDS-208A

Features and Benefits • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector) • Redundant dual 12/24/48 VDC power inputs • IP30 aluminum housing • Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ ATEX Zone 2), transportation (NEMA TS2/EN 50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/NK) • -40 to 75°C operating temperature range (-T models) Certifications
moxa

Products Details

The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto- sensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards. The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
10/100BaseT(X) Ports (RJ45 connector) EDS-208A/208A-T: 8 EDS-208A-M-SC/M-ST/S-SC Series: 7 EDS-208A-MM-SC/MM-ST/SS-SC Series: 6 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-208A-M-SC Series: 1 EDS-208A-MM-SC Series: 2
100BaseFX Ports (multi-mode ST connector) EDS-208A-M-ST Series: 1 EDS-208A-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector) EDS-208A-S-SC Series: 1 EDS-208A-SS-SC Series: 2
Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Optical Fiber 100BaseFX
Fiber Cable Type
Typical Distance 40 km
Wavelength TX Range (nm) 1260 to 1360 1280 to 1340
RX Range (nm) 1100 to 1600 1100 to 1600
TX Range (dBm) -10 to -20 0 to -5
RX Range (dBm) -3 to -32 -3 to -34
Optical Power Link Budget (dB) 12 to 29
Dispersion Penalty (dB) 3 to 1
Note:When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Connection 1 removable 4-contact terminal block(s)
Input Current EDS-208A/208A-T, EDS-208A-M-SC/M-ST/S-SC Series: 0.11 A @ 24 VDC EDS-208A-MM-SC/MM-ST/SS-SC Series: 0.15 A @ 24 VDC
Input Voltage 12/24/48 VDC, Redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
MAC Table Size 2 K
Packet Buffer Size 768 kbits
Processing Type Store and Forward
Ethernet Interface Broadcast storm protection
Housing Aluminum
IP Rating IP30
Dimensions 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)
Weight 275 g (0.61 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Hazardous Locations ATEX, Class I Division 2
Maritime ABS, DNV-GL, LR, NK
Railway EN 50121-4
Safety UL 508
Shock IEC 60068-2-27
Traffic Control NEMA TS2
Vibration IEC 60068-2-6
Freefall IEC 60068-2-31
Time 2,701,531 hrs
Standards Telcordia (Bellcore), GB
Warranty Period 5 years
Details See www.moxa.com/warranty
Device 1 x EDS-208A Series switch
Documentation 1 x quick installation guide 1 x warranty card
detail
Model Name 10/100BaseT(X) Ports RJ45 Connector 100BaseFX Ports Multi-Mode, SC Connector 100BaseFX PortsMulti-Mode, STConnector 100BaseFX Ports Single-Mode, SC Connector Operating Temp.
EDS-208A 8 -10 to 60°C
EDS-208A-T 8 -40 to 75°C
EDS-208A-M-SC 7 1 -10 to 60°C
EDS-208A-M-SC-T 7 1 -40 to 75°C
EDS-208A-M-ST 7 1 -10 to 60°C
EDS-208A-M-ST-T 7 1 -40 to 75°C
EDS-208A-MM-SC 6 2 -10 to 60°C
EDS-208A-MM-SC-T 6 2 -40 to 75°C
EDS-208A-MM-ST 6 2 -10 to 60°C
EDS-208A-MM-ST-T 6 2 -40 to 75°C
EDS-208A-S-SC 7 1 -10 to 60°C
EDS-208A-S-SC-T 7 1 -40 to 75°C
EDS-208A-SS-SC 6 2 -10 to 60°C
EDS-208A-SS-SC-T 6 2 -40 to 75°C
DR-120-24 120W/2.5A DIN-rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch, or 248 to 370 VDC input, -10 to 60°C operating temperature
DR-4524 45W/2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 50° C operating temperature
DR-75-24 75W/3.2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 60°C operating temperature
MDR-40-24 DIN-rail 24 VDC power supply with 40W/1.7A, 85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°C operating temperature
MDR-60-24 DIN-rail 24 VDC power supply with 60W/2.5A, 85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°C operating temperature
WK-30Wall-mounting kit, 2 plates, 4 screws, 40 x 30 x 1 mm
WK-46 Wall-mounting kit, 2 plates, 8 screws, 46.5 x 66.8 x 1 mm
RK-4U 19-inch rack-mounting kit
